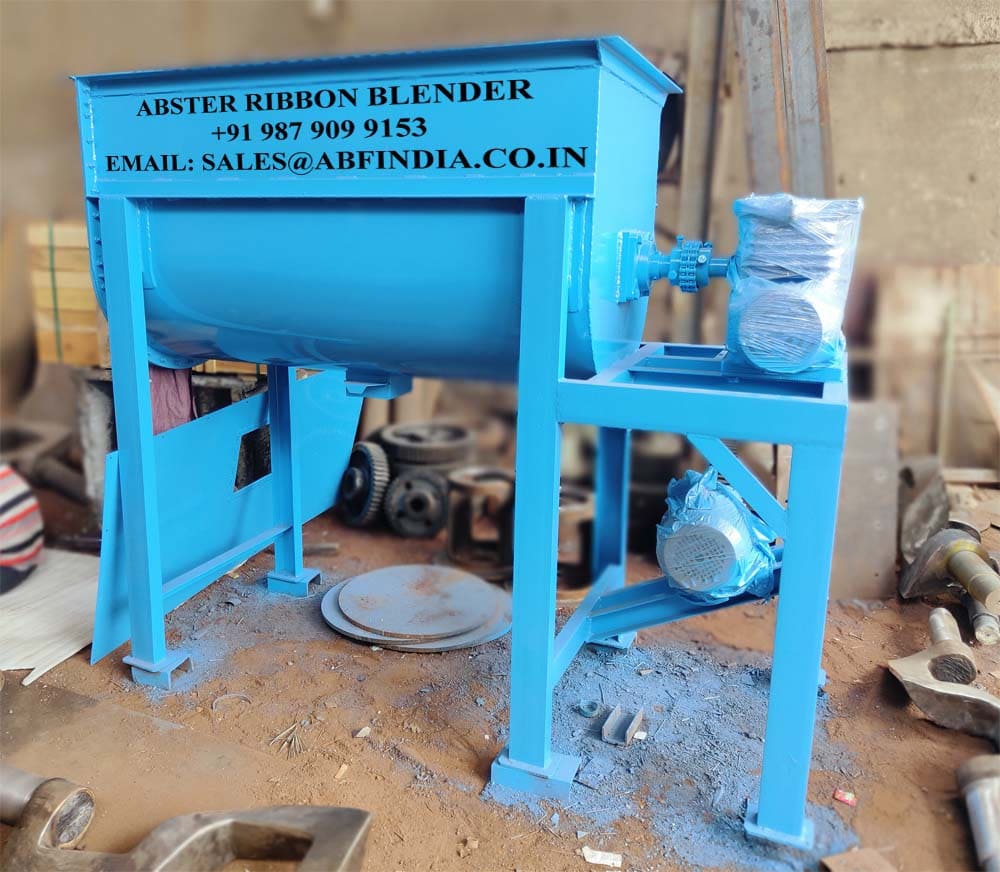

Ribbon Blender
We are then backed with the rich industrial experience in the field of manufacturing, supplying and exporting Ribbon Blenders. Our provided Ribbon Blenders are manufactured using materials of stainless steel or mild steel with various other components. The process of our inner ribbon constantly circulates the material and outer ribbon moves the ingredients in the blender. Moreover, ends of the vessel are provided with stuffing boxes on the shaft diameter. This stuffing box prevents leakage of material and also prevents material from entering into the bearings. The shaft is supported on heavy duty pedestals. The mixer is offered with a hopper and discharge. The drive consists of a suitable gear box coupled to the motor.
| Model | Gross Volume approx. | Working Volume approx. | Power |
| RM-10 | 10 Liters | 5 Liters | 0.5 H.P. |
| RM-50 | 50 Liters | 20 Liters | 1 H.P. |
| RM-75 | 75 Liters | 50 Liters | 1 H.P. |
| RM-150 | 150 Liters | 100 Liters | 2 H.P. |
| RM-250 | 250 Liters | 150 Liters | 3 H.P. |
| RM-450 | 450 Liters | 300 Liters | 5 H.P. |
| RM-600 | 600 Liters | 450 Liters | 7.5 H.P. |
| RM-1100 | 1100 Liters | 750 Liters | 10 H.P. |
| RM-1500 | 1500 Liters | 1000 Liters | 12.5 H.P. |
| RM-2000 | 2000 Liters | 1250 Liters | 15 H.P. |
| RM-3000 | 3000 Liters | 1875 Liters | 20 H.P. |
| RM-5000 | 5000 Liters | 3000 Liters | 25 H.P. |
| RM-10000 | 10000 Liters | 6000 Liters | 40 H.P. |

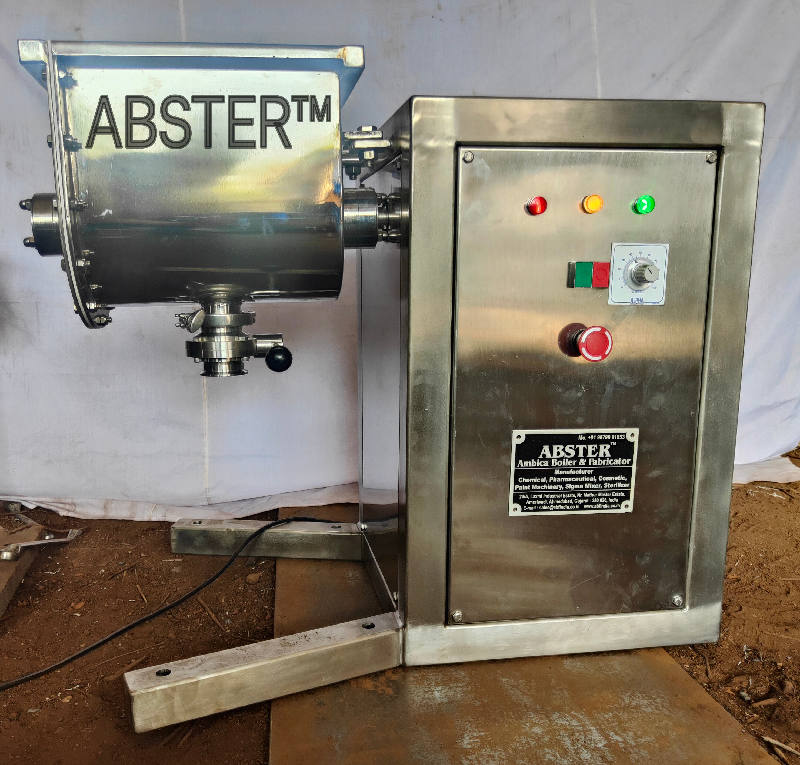

Lab Scale Ribbon Blender
Ribbon Blender Model RB is compact model used widely in pharmaceutical, nutraceutical, cosmetic, chemical and food industry. It is a light duty, compact blender is specially designed to achieve convention mechanism of blending powder components which are pre–processed like dried granules, pre-sieved powders etc. It is low shear mixer and ideal for solid/ solid mixing and solid/ liquid mixing can also be achieved when high shearing force is not desired. It occupies less head room space for large volume mixing unlike Double Cone, ‘V’ Blenders etc.
Powder blenders from ABSTER include Ribbon & Paddle designs and range in capacity from 1/2 cu ft. laboratory models to 1000 cu. ft. production units. A wide variety of horsepower and speed combinations satisfy the most demanding blending applications. Optional features such as sanitary designs, vacuum construction, special valves and cover openings can be provided to fine tune the machine to your process.
